ADA Cable Protection Ramps

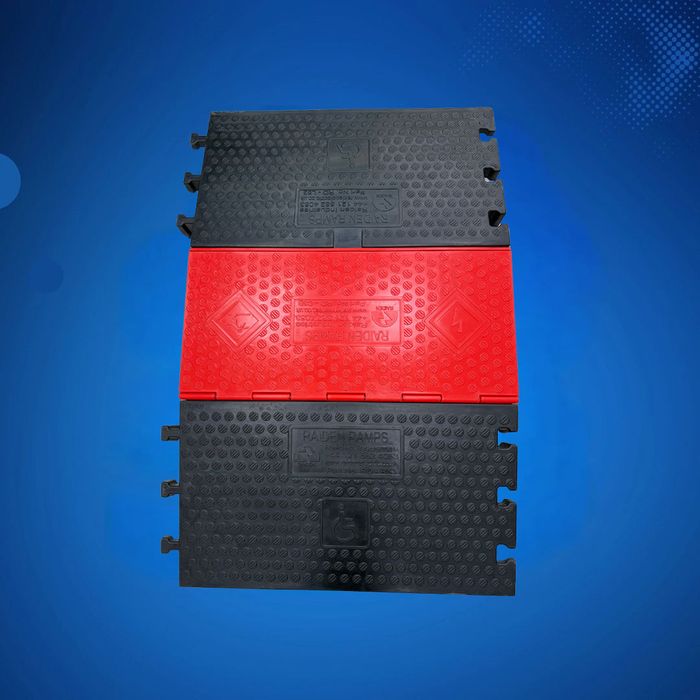

Overview The Raiden ADA Cable Protection Ramp is engineered to bridge the gap between safety and accessibility. Specifically designed with a gentle gradient to meet ADA (Americans with Disabilities Act) standards, it eliminates trip hazards and ensures easy access for wheelchairs and light vehicles. Built to withstand demanding environments, from construction sites to public events, these ramps offer robust protection for cables and hoses while maintaining full compliance with international safety regulations.

Key Features & Benefits

• ADA Compliant: Gentle slope allows for the safe and easy crossing of wheelchairs, trolleys, and pedestrians.

• Heavy-Duty Load Bearing: Supports up to 10,200 kg (22,490 lbs) per axle, making it suitable for cars, forklifts, and light trucks.

• High Capacity: Features 5 large channels (70mm x 65mm) capable of housing cables up to 240mm² or multiple bundle configurations.

• Durable Material: Made from virgin rubber infused with TPU for enhanced impact resistance and longevity in extreme heat or cold.

• Safety First: High-visibility black and yellow design with a slip-resistant surface for traction in wet or dusty conditions.

• Modular Design: "T-Bone" connectors allow multiple ramps to be securely joined end-to-end for custom lengths.

Technical Specifications

• Channels: 5

• Channel Size: 70mm (W) x 65mm (H)

• Dimensions: 1460mm (L) x 900mm (W) x 90mm (H)

• Weight: 61 kg (± 5%)

• Max Load: 10,200 kg per axle

• Material: Virgin Rubber + TPU

Applications

• Events & Venues: Concerts, festivals, and exhibitions requiring public access.

• Construction: Safe cable management on sites with mixed pedestrian and vehicle traffic.

• Public Infrastructure: Hospitals, airports, and municipal walkways.
